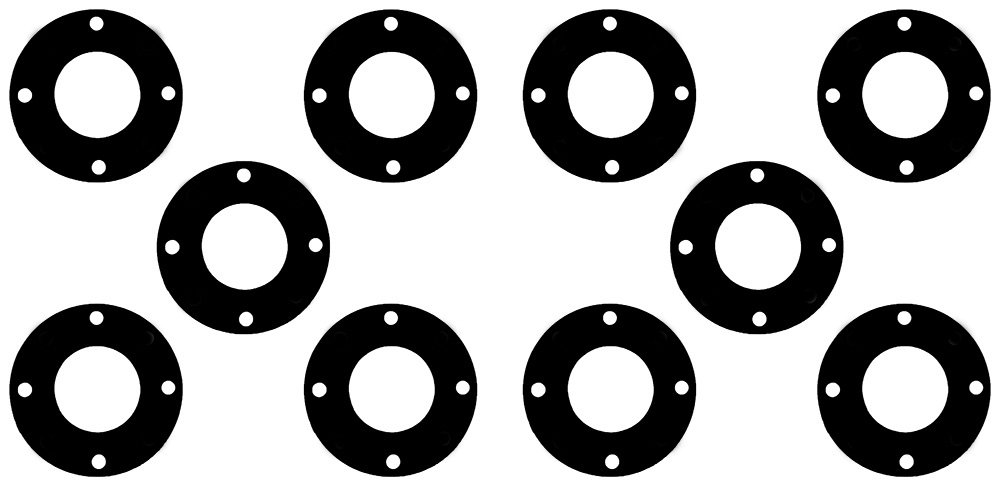

Sterling Seal CFF1100.100.062.150 Full Face Gasket - 1" Pipe Size, 1/16" Thick, 150# Pressure Class, 1.31" ID - Carbon Fiber/Graphite/Nitrile Binder (Pack of 10) - Ideal for High-Pressure Piping Systems, Industrial Valves, and Chemical Processing Equipment

Sterling Seal & Supply Style 1100 Carbon and Graphite with Nitrile Binder gaskets main attributes: heat and pressure resistant and excels in intense heat, high pressure, saturated steam and hot oils These characteristics make Style 1100 one of the most universally applicable sealing solutions on the market today Style 1100 products provide a tight seal after repeated exposure to high heat and saturated steam Sterling Seal & Supply Style 1100’s superior torque retention lowers leakage rates, reduces maintenance time, and drastically lowers emission levels It excels at maintaining an effective seal during pressure and temperature fluctuations Sterling Seal’s 1100 gaskets enable superior operational endurance and extended life expectancy Resistant to a wide range of temperatures including Maximum Service of 842 degrees F (450 degrees C) Pressure Rating for Continuous Service is 1015 psi (70 bar), and a Maximum Service of 1885 psi (130 bar) Compressibility - ASTM F36 5 - 15% Recovery - ASTM F36 min 50% Sterling Seal & Supply of NJ Style 1100 made of Carbon and Graphite with Nitrile Binder has proven their long-term reliability under extreme operating conditions over the course of many years

You will get maximum performance from our gasket materials when you use our Gasket Installation Procedure. [1] Clean and inspect the flanges, surface or parts that require gasket.

Clean or replace your bolts, nuts & washers. Lubricate the bolts, thread, nuts, washers and the underside of the head with Graphite based compound.

Flat washers are recommended to assure even distribution of the bolting force. Ensure lubricant doesn’t contaminate gasket. Carefully insert the gasket between the mating surfaces.

The use of a torque wrench is highly recommended. This assures a longer life and leak free performance. Whether an automotive head gasket or a flange gasket, it should be torqued.

Make four even increment passes in a 12-6-3-9 o'clock pattern sequence. The appropriate stress on the gasket material you use is key to its success which varies depending material chosen.
